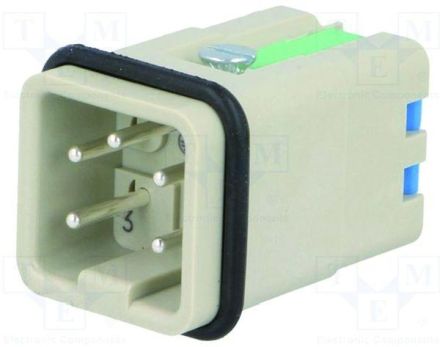

Harting 09200042633 HAN 4A-M-QL pin contact

In stock

SKU: 625109

Price on request

€11.58

€0

Overview

The pin insert 09200042633 - Han 4A-M-QL from Harting has 4 contacts + PE, the maximum current load is 10 A. The pin insert 09200042633 - Han 4A-M-QL is connected via Han-Quick Lock® up to a cable cross-section of 2.5 mm².

Property	Value
Number of poles:	4
Rated current In:	10 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.5 to 2.5 mm²
Material of the connector insert:	Thermoplastic
Contact design:	Pin
Degree of pollution:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, stranded without wire end ferrule:	0.5 to 2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Spring-loaded connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	4
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
