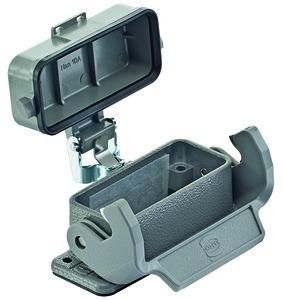

Harting 09200100321 HAN 10 A-agg-LB-K bulkhead housing

In stock

SKU: 624915

Price on request

€14.13

€0

Overview

Bullet-mounted housing, with plastic cap, size: 10 A, low design, single lever, polycarbonate, stainless steel, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP65

Property	Value
Width:	29 mm
Height:	26 mm
Housing design:	Bullet-mounted housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	other
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	no
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	lower part
Housing color:	grey
Cable gland fastening type:	without
With nozzle:	no
With seal:	yes
