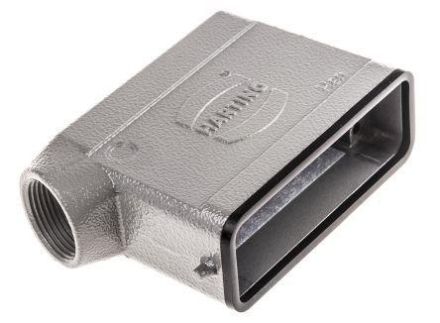

Harting 09200161541 for 16-pin 16A hood

In stock

SKU: 624895

Price on request

€10.11

€0

Overview

Connector series: Han, housing: size 16A, mechanical mounting: for cables, locking system: for terminal, housing material: aluminum stop, gland thread: PG16, sealing class: IP65, operating temperature: -40...125°C, fastening of the insert: 66x16mm, gross weight: 0.11 kg

Property	Value
Housing design:	Plug housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Arrangement of Cable feed:	side
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	no
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	lower part
Housing colour:	grey
Cable gland fastening type:	PG
With nozzle:	no
With seal:	no
Number of cable entries:	1
