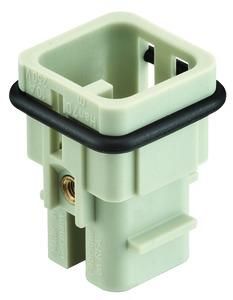

Harting 09210073031 HAN 7D-STI-C pin contact

In stock

SKU: 624820

Price on request

€3.04

€0

Overview

Inserts, crimp connection, pin, polyamide, RAL 7032 (pebble grey), rated current: 10A, size: 3 A, contacts: 7, conductor cross-section: 0.14...2.5mm

Property	Value
Number of poles:	7
Rated current In:	10 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.14 mm
Material of the connector insert:	Thermoplastic
Rated voltage:	250 V
Overvoltage category:	III
Ambient temperature:	-40 °C
Contact design:	Pin
Diameter of the plug contact:	1.6 mm
Degree of pollution:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, single-wire:	2.5 mm
Connectable conductor cross-section, fine-wire with wire end ferrule:	2.5 mm
Connectable conductor cross-section, fine-wire without wire end ferrule:	2.5 mm
Contact insert without contacts:	yes
Material of the contact coating:	other
Design of the electrical connection:	Crimp connection
With Wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
