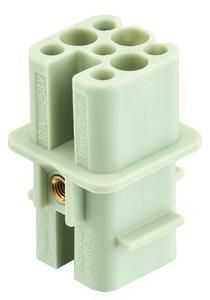

Harting 09210073131 HAN 7D-BU-C socket contact

In stock
SKU: 624815
€2.71
Into a basketIn the basketGo

Overview

Inserts, crimp connection, socket, polyamide, RAL 7032 (pebble grey), rated current: 10A, size: 3 A, contacts: 7, conductor cross-section: 0.14...2.5mm

Property Value
Number of poles: 7
Rated current In: 10 A
Rated impulse voltage: 4 kV
With protective conductor: yes
Connectable conductor cross-section, stranded: 2.5 mm
Material of the connector insert: Thermoplastic
Rated voltage: 250 V
Contact design: Socket
Pollution level: 3
Connectable conductor cross-section, fine-stranded without wire end ferrule: 2.5 mm
Contact insert without contacts: yes
Design of the electrical connection: Crimp connection
With Wire protection: no
Flammability class of the insulating material according to UL 94: HB

Characteristics

Rated surge voltage4 kV
HAB09210073131 HAN 7D-BU-C
ManufacturerHarting
HAN09210073131
GTIN5713140040458
Connectable conductor cross-section stranded2.5 mm
Design of the electrical connectionCrimp connection
Rated voltage250V
Rated current In10A
Flammability class of the insulating material according to UL 94HB
Number of poles7
Degree of contamination3
Harting 09210073131 HAN 7D-BU-C socket contact
Harting 09210073131 HAN 7D-BU-C socket contact
€2.71
Into a basketIn the basketGo
