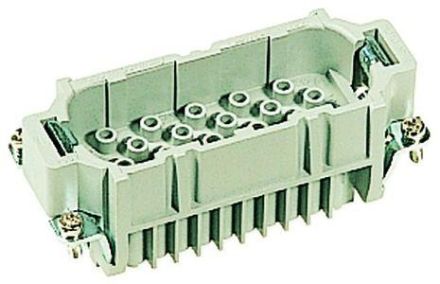

Harting 09210403001 pin insert

In stock

SKU: 625066

Price on request

€11.64

€0

Overview

Inserts, crimp connection, pin, polycarbonate, RAL 7032 (pebble grey), rated current: 10A, size: 16 B, contacts: 40, conductor cross-section: 0.14...2.5mm

Property	Value
Number of poles:	40
Rated current In:	10 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	2.5 mm
Material of the connector insert:	Thermoplastic
Rated voltage:	250 V
Contact design:	Pin
Pollution level:	3
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 mm
Contact insert without contacts:	yes
Design of the electrical connection:	Crimp connection
With Wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
