Harting 09300100422 HAN 10B-GG-21 Hood

In stock

SKU: 625218

Price on request

€19.40

€0

Overview

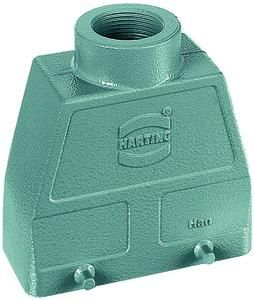

Grommet housing, size: 10 B, high design, cross bracket, straight cable entry, 1x Pg 21, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), protection class: IP65

Property	Value
Width:	72.6 mm
Height:	72 mm
Housing design:	Plug housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	top
Locking type:	Crossbar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	yes
Material of Housing:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	Lower part
Housing colour:	grey
Cable gland fastening type:	PG
With nozzle:	no
With seal:	no
Number of cable entries:	1
