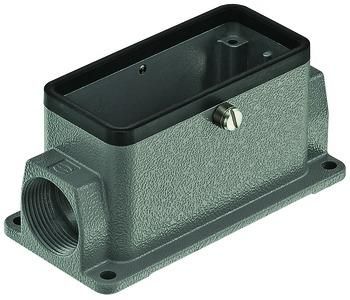

Harting 09300161280 Han 16B-asg2-R-21 socket housing

In stock

SKU: 624952

Price on request

€35.57

€0

Overview

Socket housing, size: 16 B, low construction, central bracket (grommet side), side cable entry, 2x Pg 21, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP65

Property	Value
Width:	117 mm
Height:	55.8 mm
Housing design:	Socket housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulation material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	upper part
Housing colour:	grey
Mounting type of the cable gland:	PG
With nozzle:	no
With Seal:	yes
Number of cable entries:	2
