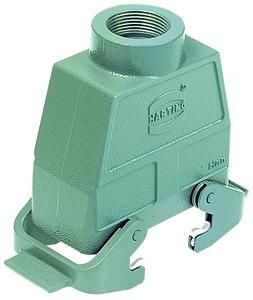

Harting 09300240431 Hood

In stock
SKU: 625093
€20.65
Into a basketIn the basketGo

Overview

Grommet housing, size: 24 B, high design, crossbar (grommet side), polycarbonate, stainless steel, straight cable entry, 1x Pg 29, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), protection class: IP65

Property Value
Housing design: Plug housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Cable feed arrangement: top
Type of locking: Crossbar
With hinged lid: no
EMC version: no
Corrosion-resistant: no
With cable gland: no
UV-resistant: no
Material of the housing: Aluminium
Flammability class of the insulating material according to UL 94: other
Housing coating: powder-coated
Bracket position: upper part
Housing colour: grey
Cable gland fastening type: PG
With nozzle: no
With seal: no
Number of cable entries: 1

Characteristics

HAB9300240431
ManufacturerHarting
HAN09300240431
GTIN5713140047105
Number of cable entries1
Housing coatingPowder coated
Operating temperatur-40 to 125 °C
Flammability class of the insulating material according to UL 94Other
EMC versionNo
Housing colorGray
With hinged lidNo
UV-resistantNo
Housing materialAluminum
Harting 09300240431 Hood
Harting 09300240431 Hood
€20.65
