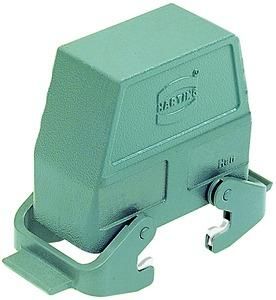

Harting 09300240531 Han 24B-gs-QB-29 hood

In stock

SKU: 624905

Price on request

€23.05

€0

Overview

Grommet housing, size: 24 B, high design, crossbar (grommet side), polycarbonate, stainless steel, side cable entry, 1x Pg 29, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), protection class: IP65

Property	Value
Width:	120 mm
Height:	76 mm
Housing design:	Plug housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Locking type:	Cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulation material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	upper part
Housing colour:	grey
Mounting type of the cable gland:	PG
With nozzle:	no
With Seal:	no
Number of cable entries:	1
