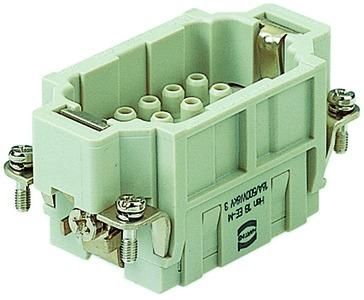

Harting 09320183001 HAN 18 EE-MC pin contact

In stock

SKU: 624995

Price on request

€16.25

€0

Overview

Inserts, crimp connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 10 B, contacts: 18, conductor cross-section: 0, 14...4 mm²

Property	Value
Number of poles:	18
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	4 to 0.14 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	600 V
Overvoltage category:	III
Ambient temperature:	125 to -40 °C
Contact design:	Pin
Diameter of the plug contact:	2.5 mm
Pollution level:	3
Material of the Contacts:	other
Connectable conductor cross-section, single-wire:	0.14 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.14 to 4 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 4 mm²
Contact insert without contacts:	yes
Material of the contact coating:	other
Design of the electrical connection:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	18
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
