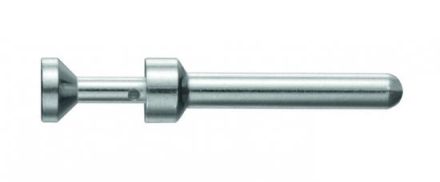

Harting 09330006121 Han E 0.5qmm pin contact

In stock
SKU: 625100
€0.33
Into a basketIn the basketGo

Overview

Crimp contact, operating current: 16 A, pin, copper alloy, silver-plated, conductor cross-section: 0.5 mm², AWG 20

Property Value
Stripping length: 7.5 mm
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.5 mm²
Connectable conductor cross-section, stranded: 0.5 mm²
Design of the electrical connection: Crimp connection
Diameter of the plug contact: 2.5 mm
Contact design: Pin
Max. operating current of a contact: 16 A
Ambient temperature: -40 to 125 °C
Material of the contact coating: Silver
Material of the contact: other copper alloys
Type of contact: turned (lathe)
Min. number of mating cycles: 500

Characteristics

HAB09330006121 Han E 0,5qmm
Minimal order100 pcs
ManufacturerHarting
HAN09330006121
GTIN2000006856494
Connectable conductor cross-section stranded0.5 mm²
Design of the electrical connectionCrimp connection
Ambient temperature-40 to 125 °C
Harting 09330006121 Han E 0.5qmm pin contact
