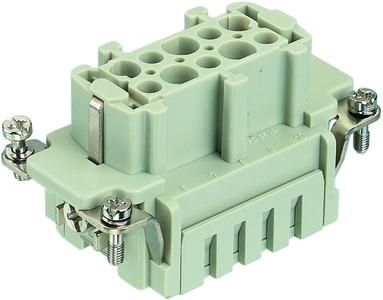

Harting 09330102716 Han 10 ES-F (Han 10 ES-BU) socket contact

In stock

SKU: 624826

Price on request

€10.95

€0

Overview

Inserts, cage clamp connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 10 B, contacts: 10, conductor cross-section: 0.14...2.5 mm², copper alloy, silver-plated

Property	Value
Number of poles:	10
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section stranded:	0.14 to 2.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	500 V
Contact design:	Socket
Pollution level:	3
Material of the contact:	Other copper alloys
Connectable conductor cross-section, stranded without wire end ferrule:	0.14 to 2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	silver
Design of the electrical connection:	spring-loaded connection
With wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	thermoplastic
Number of power contacts:	10
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
