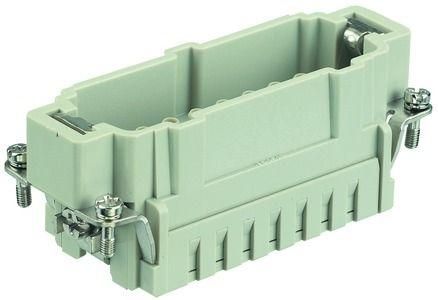

Harting 09330162602 connector insert

In stock

SKU: 625071

Price on request

€7.65

€0

Overview

Inserts, crimp connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 16 B, contacts: 16, conductor cross-section: 0, 14...4 mm²

Property	Value
Number of poles:	16
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.14 up to 4 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	500 V
Contact design:	Pin
Degree of pollution:	3
Material of the contact:	other
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 up to 4 mm²
Contact insert without contacts:	no
Material of the contact coating:	other
Design of the electrical connection:	crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	16
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
