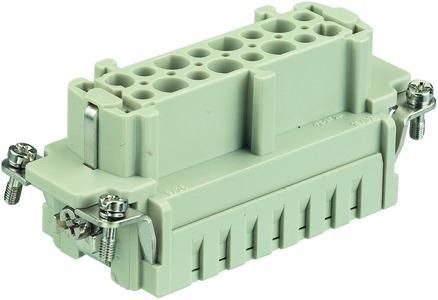

Harting 09330162716 Han 16 ES-F socket contact

In stock

SKU: 624827

Price on request

€13.95

€0

Overview

Inserts, cage clamp connection, socket, polycarbonate, RAL 7032 (pebble grey), rated current: 16A, size: 16 B, contacts: 16, conductor cross-section: 0.14...2.5mm, copper alloy, silver-plated

Property	Value
Number of poles:	16
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section stranded:	2.5 mm
Material of the connector insert:	Thermoplastic
Rated voltage:	500 V
Contact design:	Socket
Pollution level:	3
Material of the contact:	Other copper alloys
Connectable conductor cross-section, stranded without wire end ferrule:	2.5 mm
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Spring-loaded connection
With wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
