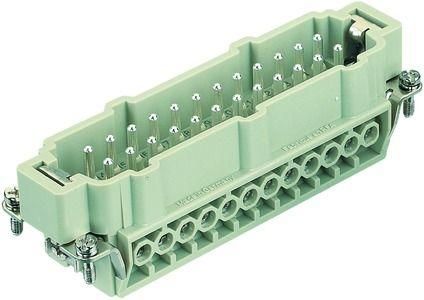

Harting 09330242601 24-pin 24E pin insert (M)

In stock

SKU: 624727

Price on request

€19.91

€0

Overview

Inserts, screw connection, pin, polycarbonate, RAL 7032 (pebble grey), rated current: 16A, size: 24 B, contacts: 24, conductor cross-section: 0.75...2.5mm, copper alloy, silver-plated

Property	Value
Number of poles:	24
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	2.5 mm
Material of the connector insert:	Thermoplastic
Rated voltage:	500 V
Contact design:	Pin
Pollution level:	3
Material of the contact:	Other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 mm
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Screw connection
With wire protection:	yes
