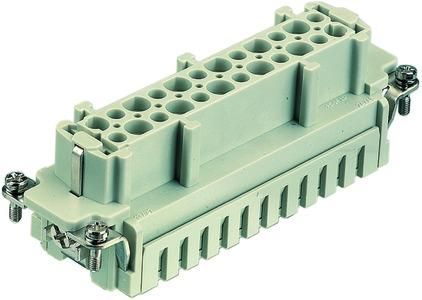

Harting 09330242716 Han 24 ES-F socket contact

In stock
SKU: 624828
€19.75
Into a basketIn the basketGo

Overview

Inserts, cage clamp connection, socket, polycarbonate, RAL 7032 (pebble grey), rated current: 16A, size: 24 B, contacts: 24, conductor cross-section: 0.14...2.5mm, copper alloy, silver-plated

Property Value
Number of poles: 24
Rated current In: 16 A
Rated impulse voltage: 6 kV
With protective conductor: yes
Connectable conductor cross-section stranded: 2.5 mm
Material of the connector insert: Thermoplastic
Rated voltage: 500 V
Contact design: Socket
Pollution level: 3
Material of the contact: Other copper alloys
Connectable conductor cross-section, stranded without wire end ferrule: 2.5 mm
Contact insert without contacts: no
Material of the contact coating: Silver
Design of the electrical connection: Spring-loaded connection
With wire protection: yes
Flammability class of the insulating material according to UL 94: V0

Characteristics

Rated surge voltage6 kV
HAB09330242716 Han 24 ES-F
ManufacturerHarting
HAN09330242716
GTIN5713140052024
Connectable conductor cross-section stranded2.5 mm
Design of the electrical connectionSpring-loaded connection
Rated voltage500V
Rated current In16A
Flammability class of the insulating material according to UL 94V0
Number of poles24
Degree of contamination3
