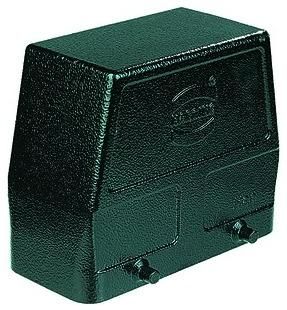

Harting 09370160521 Han 16M-gs-29 hood

In stock

SKU: 625000

Price on request

€53.64

€0

Overview

Grommet housing, size: 16 B, high design, cross bracket, side cable entry, 1x Pg 29, housing material: die-cast aluminum, powder-coated, RAL 9005 (jet black), seal material: FPM, protection class: IP65

Property	Value
Width:	55.8 mm
Height:	76 mm
Housing design:	Plug housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Locking type:	Crossbar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of Housing:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	Lower part
Housing colour:	black
Cable gland fastening type:	PG
With nozzle:	no
With seal:	no
Number of cable entries:	1
