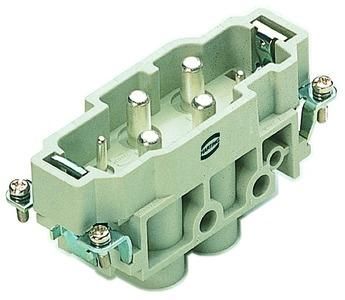

Harting 09380062611 HAN K4/0-STI-S pin contact

In stock

SKU: 624933

Price on request

€35.12

€0

Overview

Inserts, screw connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 80 A, size: 16 B, contacts: 4, conductor cross-section: 1.5...16 mm², copper alloy, silver-plated

Property	Value
Number of poles:	4
Rated current In:	80 A
Rated impulse voltage:	8 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	16 to 1.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	600 V
Overvoltage category:	III
Ambient temperature:	125 to -40 °C
Contact design:	Pin
Diameter of the plug contact:	6 mm
Degree of pollution:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, single-wire:	1.5 to 16 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	1.5 to 16 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	1.5 to 16 mm²
Contact insert without contacts:	no
Material of the contact coating:	silver
Design of the electrical Connection:	Screw connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	4
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
