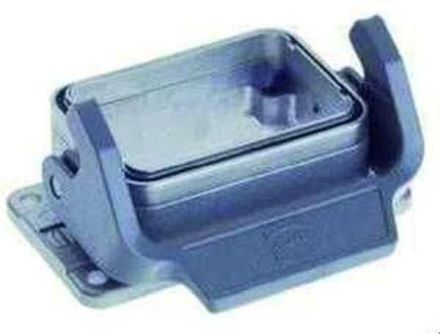

Harting 09628060301 for 6-pin B EMC bulkhead housing

In stock
SKU: 624860
€23.53
Into a basketIn the basketGo

Overview

Han® EMC housing for high shielding attenuation. Area of application: for sensitive interfaces that must be shielded against electrical, magnetic or electromagnetic fields. Identifying feature: - electrically conductive surface, internal seal - Housing material: die-cast aluminum alloy - Locking bracket: Han-Easy Lock® - Cable glands - EMC cable gland to connect the cable shield to the housing in a conductive manner - IP65

Property Value
Width: 43.4 mm
Height: 27.35 mm
Housing design: Bullet-mounted housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to +125 °C
Cable feed arrangement: other
Locking type: Longitudinal bracket
With hinged lid: no
EMC version: no
Corrosion-resistant: no
With cable gland: no
UV-resistant: no
Material of the housing: Aluminium
Flammability class of the insulation material according to UL 94: other
Housing coating: uncoated
Bracket position: Lower part
Housing color: other
Mounting type of the cable gland: without
With nozzle: no
With seal: yes

Characteristics

HAB09628060301 for 6-pin B
ManufacturerHarting
HAN09628060301
GTIN2000000102986
Housing coatingUncoated
Operating temperatur-40 to +125 °C
Width43.4 mm
Flammability class of the insulating material according to UL 94Other
EMC versionNo
Housing colorOther
Height27.35 mm
With hinged lidNo
UV-resistantNo
Housing materialAluminum
Harting 09628060301 for 6-pin B EMC bulkhead housing
Harting 09628060301 for 6-pin B EMC bulkhead housing
€23.53
