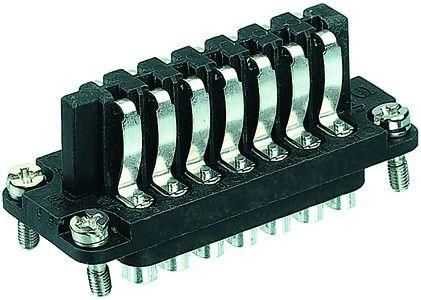

Harting 09700142810 Han 10A Staf 14-pin screw STAF - spring

In stock

SKU: 625086

Price on request

€10.81

€0

Overview

Inserts, solder connection, socket, polyamide (PA), black, rated current: 10 A, size: 10 A, contacts: 14, conductor cross-section: 2.5 mm², copper alloy, silver-plated

Property	Value
Number of poles:	14
Rated current In:	10 A
Rated impulse voltage:	0.8 kV
With protective conductor:	no
Connectable conductor cross-section, stranded:	2.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	25 V
Contact design:	Socket
Pollution level:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Solder connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	HB
Material of the contact insert:	Thermoplastic
Number of power contacts:	14
Operating temperature:	-40 to 100 °C
Min. Number of mating cycles:	500
