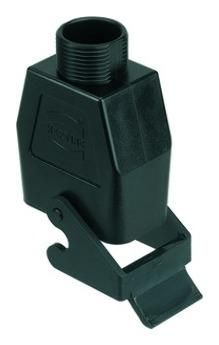

Harting 19120080729 Han Q 8/0-kg-M25 coupling housing

In stock

SKU: 625223

Price on request

€17.46

€0

Overview

Coupling housing, for Han-Compact half screw connection, size: Han-Compact, single lever, polyamide, straight cable entry, 1x M25, housing material: polycarbonate, RAL 9005 (jet black), protection class: IP65

Property	Value
Width:	34.9 mm
Height:	64.5 mm
Housing design:	Coupling housing
Protection class (IP), mounted:	IP65/IP67
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	no
Housing material:	Plastic
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	other
Bracket position:	Lower part
Housing color:	black
Cable gland fastening type:	metric
With nozzle:	no
With seal:	no
Number of cable entries:	1
