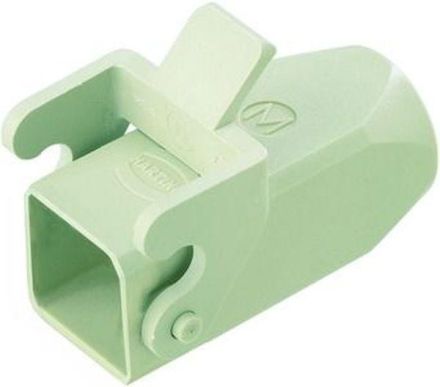

Harting 19200030720 HAN 3A-KG-QB-M20 coupling housing

In stock

SKU: 624840

Price on request

€5.81

€0

Overview

Coupling housing, size: 3 A, single lever, straight cable entry, 1x M20, housing material: polycarbonate, RAL 7032 (pebble grey), protection class: IP44, IP67, with sealing screw 09 20 000 9918

Property	Value
Width:	24 mm
Height:	57 mm
Housing design:	Coupling housing
Protection class (IP), mounted:	IP44
Operating temperature:	125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	no
Material of the housing:	Plastic
Flammability class of the insulating material according to UL 94:	V0
Bracket position:	Lower part
