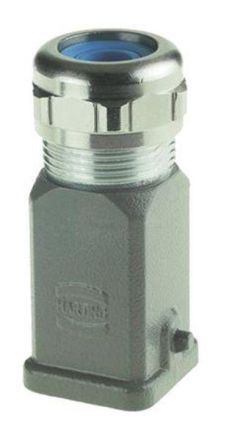

Harting 19200031425 Han 3A-gg-M25 hood

In stock

SKU: 625238

Price on request

€11.12

€0

Overview

Housing material: die-cast zinc, housing surface: powder-coated, seal material: NBR, net weight: 76.36 g, limit temperature: -40 ... +125 °C, protection class according to IEC 60529: IP44, IP65 / IP67 with sealing screw 09 20 000 9918, cable diameter: 6 ... 12 mm,

Property	Value
Housing design:	Plug housing
Protection class (IP), mounted:	IP44
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	no
Housing material:	zinc
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	lower part
Housing colour:	grey
Cable gland fastening type:	other
With nozzle:	no
With seal:	yes
Number of cable entries:	1
