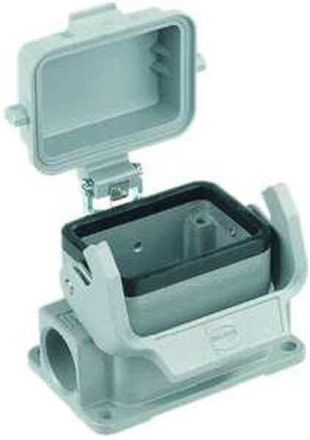

Harting 19300061295 HAN 6B-asg2-LB-K-M20 socket housing + cover

In stock

SKU: 624755

Price on request

€18.12

€0

Overview

Socket housing, with plastic cap, size: 6 B, low design, single lever, polycarbonate (PC), stainless steel, side cable entry, 2x M20, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR

Property	Value
Housing design:	Socket housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Type of the locking mechanism:	Longitudinal bracket
With hinged lid:	yes
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	no
Material of the housing:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	lower part
Housing colour:	grey
Cable gland fastening type:	metric
With nozzle:	no
With seal:	yes
Number of cable entries:	2
