Harting 19300101230 for 10-pin 10B socket housing

In stock

SKU: 624722

Price on request

€16.99

€0

Overview

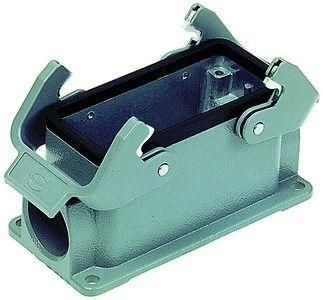

Socket housing, size: 10 B, low design, cross bar, polycarbonate, stainless steel, side cable entry, 1x M20, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP65

Property	Value
Housing design:	Socket housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Type of locking:	Crossbar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	no
Material of the housing:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	lower part
Housing color:	grey
Cable gland fastening type:	metric
With nozzle:	no
With seal:	yes
Number of cable entries:	1
