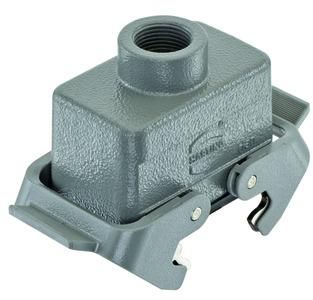

Harting 19300161731 Han 16B-kg-QB-M25 coupling housing

In stock

SKU: 625226

Price on request

€19.83

€0

Overview

Coupling housing, size: 16 B, low design, cross bracket, polycarbonate, stainless steel, straight cable entry, 1x M25, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP65

Property	Value
Width:	93.5 mm
Height:	63.4 mm
Housing design:	Coupling housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	yes
Material of the housing:	aluminium
Flammability class of the insulation material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	lower part
Housing colour:	grey
Cable gland fastening type:	metric
With nozzle:	no
With Seal:	yes
Number of cable entries:	1
