Harting 19300241271 Han 24B-asg2-QB-M25 socket housing

In stock

SKU: 624844

Price on request

€22.28

€0

Overview

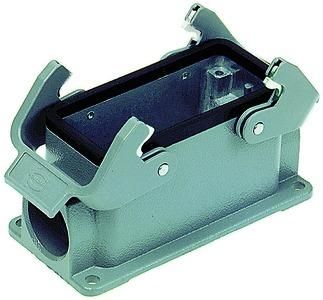

Socket housing, size: 24 B, low design, cross bracket, polycarbonate, stainless steel, side cable entry, 2x M25, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP65

Property	Value
Width:	144 mm
Height:	56 mm
Housing design:	Socket housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Locking type:	Cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	yes
Material of Housing:	Aluminium
Flammability class of the insulating material according to UL 94:	other
Housing coating:	powder-coated
Bracket position:	Lower part
Housing color:	grey
Cable gland fastening type:	metric
With nozzle:	no
With seal:	yes
Number of cable entries:	2
