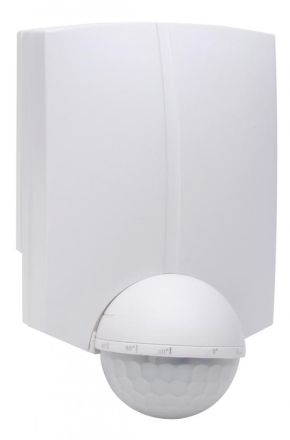

Kopp 823712018 INFRAcontrol R 110° AP IP44 white infrared motion detector

Kopp 823712018 INFRAcontrol R 110° AP IP44 white infrared motion detector

In stock

SKU: 547295

Price on request

€76.08

€0

Overview

INFRAcontrol R 110 AP IP44. Infrared motion switch. White. 230VAC, 50 Hz Detection angle: 110 degrees Incandescent lamp: 1,000 W High-voltage halogen lamps: 500 W Duty cycle: 6 sec. - 10 min. Test pulse output 1 sec. Detection range: up to 10 m Twilight sensor continuously adjustable from 5 lux. Protection class: IP44 including corner bracket

Property	Value
Depth:	63,000 mm
Width:	80,000 mm
Height:	129,000 mm
Design:	Motion detector
Voltage type:	AC
Max. switching capacity:	1000 W
Min. duty cycle:	6 s
Max. duty cycle:	10 min
Max. inrush current:	5 A
Max. Frontal range:	10,000 m
Color:	white
Installation height:	2,500 m
Response brightness adjustable:	yes
Creep-under protection:	no
Response sensitivity adjustable:	yes
Surface finish:	glossy
Surface protection:	untreated
Number of Switching zones:	1
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Automatic stair light:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
Alarm function:	no
Teach function for response brightness:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	no

Characteristics

Bridging switchNo

Number of switching zones1

Forced shutdownNo

Max. inrush current5 A

Forced switching onNo

HABINFRAcontrol R 110° AP IP44 white

Manufacturer

HAN823712018

GTIN4008224632539

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

VersionMotion detector

Surface finishGlittering

Width80,000 mm

Color

Remote controllableNo

Suitable for C-loadYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height129,000 mm

Constant light controlNo

Max. duty cycle10mins

Max. range frontal10,000m

Max. switching capacity1000W

Min. duty cycle6s

With DALI interfaceNo

With remoteNo

Extension inputNo

Surface protectionUntreated

Voltage typeAC

Teach function for response brightnessNo

Depth63,000 mm

Animal corridorNo

TransparentNo

NetworkableNo
