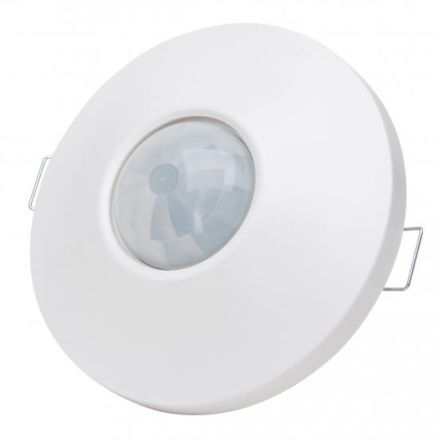

Kopp 827802001 PM360-DE-12-M-1-ws presence detector

Kopp 827802001 PM360-DE-12-M-1-ws presence detector

In stock

SKU: 710555

Price on request

€92.68

€0

Overview

Presence detector PM360-DE-12-M-1-ws, detection angle 360°, ceiling installation, detection range up to 12 m, protection class IP20, infrared detection, master, 1 channel for switching light, white, 230 VAC, 50 Hz. Incandescent lamps: 2,000 W High-voltage halogen lamps: 1,000 VA Fluorescent lamps: 900 VA (100µF) Energy-saving lamp: 600 VA LED: 400 W/VA, run-on time: 30 sec. - 30 min., pulse output 1 sec., response brightness continuously variable 10 - 2000 lux., remote control (IR remote control optional)

Property	Value
Depth:	75,500 mm
Design:	Presence detector
Voltage type:	AC
Max. switching capacity:	2000 W
Min. duty cycle:	30 s
Max. duty cycle:	30 min
Max. inrush current:	10 A
Max. range to one side:	6,000 m
Max. Presence area:	12,500 m²
Max. Frontal range:	6,000 m
Color:	white
RAL number (similar):	9010
Installation height:	2,500 m
Response brightness adjustable:	yes
Creep-under protection:	no
Response sensitivity adjustable:	yes
Surface finish:	matt
Surface protection:	painted
Diameter of detection field on floor:	12.00 m
Switch-off delay:	300 s
Switch-on delay:	10 s
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	yes
Automatic stair light:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Connection type:	Plug-in terminal
Diameter:	112 mm
Installation depth:	41,000 mm
Installation diameter:	65 mm
Min. depth of device box:	47,000 mm

Characteristics

Bridging switchNo

With signal unitNo

Forced shutdownYes

Max. inrush current10 A

Forced switching onYes

Max. presence range12.500 m²

HABPM360-DE-12-M-1-ws

Manufacturer

HAN827802001

GTIN4008224642934

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

VersionPresence detector

Surface finishFrosted

Diameter112 mm

Installation diameter65 mm

Installation depth41,000 mm

Color

Remote controllableYes

Suitable for C-loadYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Constant light controlNo

Max. duty cycle30 min

Max. range frontal6,000m

Max. range to one side6,000m

Max. switching capacity2000W

Min. duty cycle30s

Min. depth of the device box47,000 mm

With DALI interfaceNo

With remoteNo

Extension inputYes

Surface protectionPainted

RAL number (similar)9010

Voltage typeAC

Teach function for response brightnessYes

Depth75,500 mm

Animal corridorNo

TransparentNo

NetworkableYes
