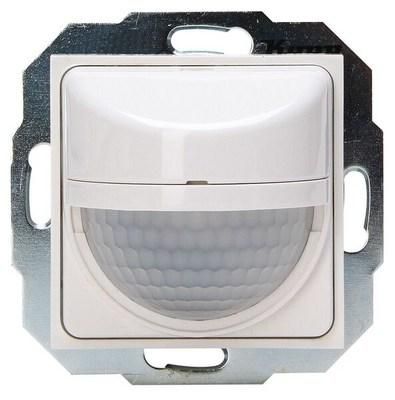

Kopp 840429052 INFRAcontrol T 180° UP IP40 pure white infrared motion detector

Kopp 840429052 INFRAcontrol T 180° UP IP40 pure white infrared motion detector

In stock

SKU: 546893

Price on request

€95.51

€0

Overview

INFRAcontrol T 180° UP IP40 INFRAcontrol motion switch, color pure white, flush-mounted, protection class IP40, detection range 180°, detection range 9m, recommended installation height 2m, setting time 20 sec., 1 min, 5 min, 15 min, 30 min, test (2 sec.), twilight threshold adjustable 5, 20, 100 lux and infinite. Lux range 5 -1000. Test mode. 2-wire device for resistive and inductive loads, connection values: 230 VAC, 50 Hz, incandescent lamps max. 20-300 W, AC halogen lamp 20-300W, LV halogen lamp 20-300W, fluorescent lamps 20-150 W, energy-saving lamp 20-150 W, LED lamp: 5-100 W.

Property	Value
Depth:	65,000 mm
Width:	55,000 mm
Height:	65,000 mm
Design:	Motion detector
Voltage type:	AC
Protection class (IP):	IP40
Max. switching capacity:	300 W
Min. duty-on time:	5 s
Max. duty-on time:	30 min
Max. inrush current:	10 A
Max. Range to one side:	9,000 m
Max. Frontal range:	9,000 m
Horizontal detection angle:	0 to 180 °
Color:	white
RAL number (similar):	9010
Material:	plastic
Mounting height:	1,200 m
Response brightness:	5 to 1000 lx
Response brightness adjustable:	yes
Creep protection:	yes
Temperature:	0 to 45 °C
Adjustable response sensitivity:	yes
Sensor type:	passive infrared
Surface finish:	glossy
Surface protection:	untreated
Material quality:	thermoplastic
Diameter of detection field on floor:	6.00 m
Number of switching zones:	3
Sensor swivel range, vertical:	0 °
Sensor swivel range, horizontal:	0 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Automatic stair lighting:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with Dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	Screw terminal
Antibacterial treatment:	no
Diameter:	50 mm
Installation width:	50,000 mm
Installation depth:	31,500 mm
Installation length:	31,500 mm
Installation diameter:	50 mm
Min. depth of device box:	32,000 mm
Max. LED switching capacity:	100 W
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Bridging switchYes

With signal unitNo

Number of switching zones3

Response brightness5 to 1000 lx

Forced shutdownYes

Max. inrush current10 A

Forced switching onYes

HABINFRAcontrol T 180° UP IP40 pure white

Manufacturer

HAN840429052

GTIN4008224616461

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishGlittering

Width55,000 mm

Diameter50 mm

Installation width50,000 mm

Installation diameter50 mm

Installation length31,500 mm

Installation depth31,500 mm

Detection angle horizontal0 to 180 °

Color

Remote controllableNo

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height65,000 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant light controlNo

Max. duty cycle30 min

Max. range frontal9,000m

Max. range to one side9,000m

Max. switching capacity300W

Min. duty cycle5s

Min. depth of the device box32,000 mm

With DALI interfaceNo

With remoteNo

Extension inputNo

Surface protectionUntreated

RAL number (similar)9010

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature0 to 45 °C

Depth65,000 mm

Animal corridorNo

TransparentNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
