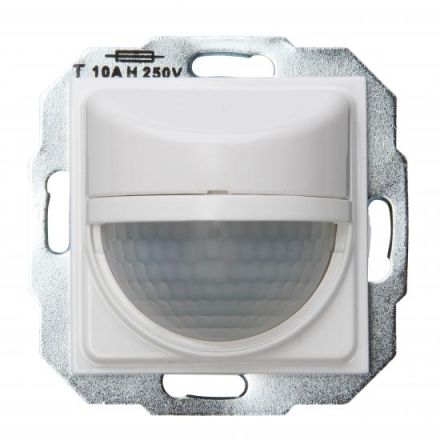

INFRAcontrol R 180 UP IP40. Infrared motion switch. Pure white. For HK 07 / Athenis, without intermediate frame. Dimensions 55x55 mm, 3-wire. 230VAC, 50/60 Hz Detection angle: 180 degrees Incandescent lamp: 2,000 W Fluorescent lamp: 900 VA LED lamps: 500 W Halogen lamps: 1,000 W Duty cycle 5-stage: 20 sec. - 30 min. Detection range: up to 9 m Creep-by protection Twilight sensor continuously adjustable from 5 lux. Switch: ON/OFF/AUTO. Switch-off warning master/slave pulse output. Protection class: IP40
