Hegler 9010040 STAPAFLEX-EPY DN40 steel armoured pipe Stapaflex

In stock

SKU: 1054877

Price on request

€51.95

€0

Overview

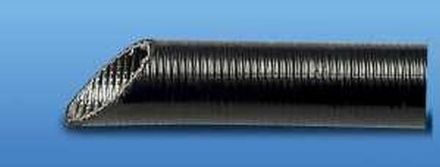

HEGLER STAPAFLEX EPY is a heavy, flexible steel armoured pipe made of multi-layer galvanised steel strip and impregnated insulating paper insert with plastic sheath for corrosion protection, in nominal sizes DN 20, 25, 32, 40 and 50. Suitable for installation in machine, plant and vehicle construction. VDE 0605, DIN EN 61386-22. Minimum compressive strength: F 1250 N/5 cm.

Property	Value
Outer diameter:	40 mm
Inner diameter:	31.2 mm
Design:	flexibly corrugated with plastic coating
Material:	steel
Material quality:	steel (rolled steel strip)
Surface:	plastic-coated
Quality of surface coating:	uncoated
Surface polished:	no
Surface brushed:	no
Flush-mounted:	no
Surface-mounted:	no
Suitable for concrete installation:	no
Machinery and plant installation:	yes
Underfloor installation (bitumen, hot asphalt):	no
Underfloor installation (screed):	no
Installation outdoors:	no
Installation on wood:	no
Hollow wall installation:	no
Installation in the ground:	no
Compressive strength class:	heavy (class 4)
Operating temperature:	-25 to 60 °C
