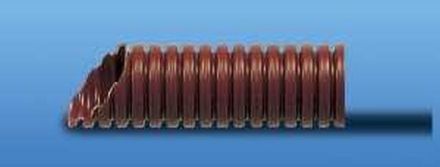

Hegler 9250020 HEGLERFLEX-EM105 DN20 (ESPM105) plastic insulation pipe

In stock
SKU: 1054780
€2.29
Into a basketIn the basketGo

Overview

HEGLERFLEX electrical installation pipes meet all requirements for easy and advanced installation thanks to their special corrugated shape and consistent quality. Pipes of different stiffness, different raw materials and different properties are offered to meet the different requirements placed on the pipes by the design or load. Material: special plastic (flame-retardant), USE: installations with required high heat resistance in vibrated, poured and rammed concrete as well as screed.

Property Value
Outer diameter: 20 mm
Inner diameter: 13.5 mm
Highly slippery inner layer: no
Material: other
With socket: no
Color: other
Halogen-free: no
Flame-retardant version: yes
Bending behavior: flexible, self-recovering
Compressive strength class: medium (class 3)
Impact resistance: medium (class 3)
Surface-mounted: no
Flush-mounted: no
On wood: no
Hollow wall: no
Suitable for concrete installation: yes
Machinery and plant installation: no
Underfloor installation (screed): yes
Outdoor installation: no
Laying in the ground: no
Operating temperature: -15 to 105 °C

Characteristics

Inner diameter13.5 mm
Bending behaviorFlexible, self-recovering
HABHEGLERFLEX-EM105 DN20 (ESPM105)
Minimal order50 meters
ManufacturerHegler
HAN9250020
GTIN4021922203788
Outer diameter20 mm
Operating temperatur-15 to 105 °C
ColorOther
Halogen freeNo
Impact resistanceMedium (class 3)
MaterialOther
Hegler 9250020 HEGLERFLEX-EM105 DN20 (ESPM105) plastic insulation pipe
