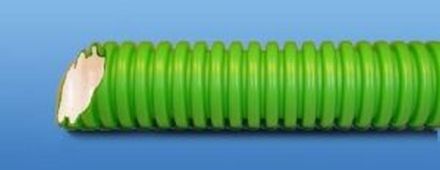

Hegler 9316625 EYLF25 flexible profiline full green insulation tube

In stock
SKU: 1054563
€1
Into a basketIn the basketGo

Overview

HEGLERFLEX electrical installation pipes meet all requirements for easy and advanced installation thanks to their special corrugated shape and consistent quality. Pipes of different stiffness, raw materials and properties are available to suit the different requirements placed on the pipes by the design or load. In addition, electrical installation pipes with an internal coating are available for the practical and future-oriented installation of cables and wires with the product name profiline. MATERIAL: PE/PP (flame-retardant, special inner coating for easy cable insertion, USE: installations in and under plaster, hollow walls, suspended ceilings.

Property Value
Outer diameter: 25 mm
Inner diameter: 17.4 mm
Highly slippery inner layer: yes
Material: Polyethylene (PE)
With sleeve: no
Color: green
Halogen-free: no
Flame-retardant version: yes
Bending behavior: flexible
Compressive strength class: light (class 2)
Impact resistance: light (class 2)
Surface-mounted: no
Flush-mounted: yes
On wood: no
Hollow wall: yes
Suitable for concrete installation: yes
Machinery and plant installation: no
Underfloor installation (screed): no
Outdoor installation: no
Laying in the ground: no
Operating temperature: -15 to 90 °C

Characteristics

Inner diameter17.4 mm
Bending behaviorFlexibel
HABEYLF25 flexible profiline full green
Minimal order50 meters
ManufacturerHegler
HAN9316625
GTIN4021922134921
Outer diameter25 mm
Operating temperatur-15 to 90 °C
ColorGreen
Halogen freeNo
Impact resistanceLight (class 2)
MaterialPolyethylene (PE)
Hegler 9316625 EYLF25 flexible profiline full green insulation tube
Hegler 9316625 EYLF25 flexible profiline full green insulation tube
€1
