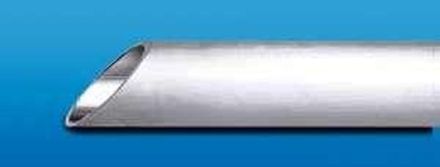

Hegler 9520020 ALU-ES DN20 aluminum pipe pluggable

In stock

SKU: 1054727

Price on request

€4.40

€0

Overview

HEGLER-ALU ES is a heavy aluminum plug-in pipe in the nominal sizes DN 16, 20, 25, 32, 40, 50 and 63, in 3 m rods. Suitable for installation with increased mechanical and thermal requirements or outdoors. VDE 0605, DIN EN 61386-21. Minimum compressive strength: F 1250 N/5 cm.

Property	Value
Outer diameter:	20 mm
Inner diameter:	17 mm
Design:	rigid without thread
Material:	aluminium
Material quality:	other
Surface:	untreated
Quality of surface coating:	uncoated
Surface polished:	no
Surface brushed:	no
Flush-mounted:	no
Surface-mounted:	yes
Suitable for concrete installation:	no
Machinery and system installation:	no
Underfloor installation (bitumen, hot asphalt):	no
Underfloor installation (screed):	no
Installation outdoors:	yes
Installation on wood:	yes
Hollow wall installation:	no
Installation in the ground:	no
Compressive strength class:	very heavy (class 5)
Operating temperature:	-45 to 250 °C
