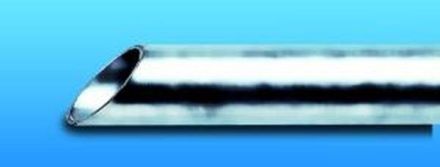

Hegler 9540020 STAPA-ES-V2A DN20 W1.4301 stainless steel armored pipe pluggable

In stock
SKU: 1054567
€19.79
Into a basketIn the basketGo

Overview

Armoured steel pipes made of rolled mild steel are suitable for high pressure and temperature loads and for the highest mechanical stresses. STAPA pipes are supplied in standard lengths of 3.00 m. Functional integrity E30/E90, these products are suitable for laying cables with functional integrity and are tested in the system. MATERIAL: Stainless steel W1.4301 (V2A), USE: Installations in damp, wet environments, such as breweries, dairies, beverage bottling plants, large slaughterhouses, butcher shops, etc. DIN EN 61386-21: Classification 555710.

Property Value
Outer diameter: 20 mm
Inner diameter: 18 mm
Design: rigid without thread
Material: stainless steel
Material quality: stainless steel (V2A)
Surface: untreated
Quality of surface coating: uncoated
Surface polished: no
Surface brushed: no
Flush-mounted: no
Surface mounted: yes
Suitable for concrete installation: no
Machines and System installation: no
Underfloor installation (bitumen, hot asphalt): no
Underfloor installation (screed): no
Installation outdoors: yes
Installation on wood: yes
Hollow wall installation: no
Installation in the ground: no
Compressive strength class: very heavy (class 5)
Operating temperature: -45 to 400 °C

Characteristics

Inner diameter18 mm
HABSTAPA-ES-V2A DN20 W1.4301
Minimal order3 meter
ManufacturerHegler
HAN9540020
GTIN4021922135638
VersionRigid without thread
Outer diameter20 mm
Operating temperature-45 to 400 °C
SurfaceUntreated
Brushed surfaceNo
MaterialStainless steel
Material qualityStainless steel (V2A)
Hegler 9540020 STAPA-ES-V2A DN20 W1.4301 stainless steel armored pipe pluggable
Hegler 9540020 STAPA-ES-V2A DN20 W1.4301 stainless steel armored pipe pluggable
