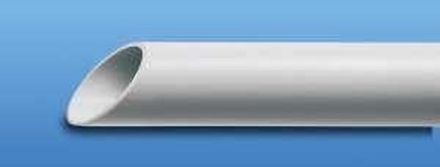

HEGLERPLAST electrical installation pipes for exposed installation, which should also provide a perfect visual appearance. PVC-U plastic pipes are ideal for in-wall and concealed installation and in concrete construction. In addition, only a small number of fastening points are required, making installation inexpensive. The pre-assembled or molded sleeve on the rigid HEGLERPLAST pipes provides an installation advantage. HEGLERPLAST pipes are supplied in a standard length of 3.00 m. Special lengths are available on request. MATERIAL: PVC-U (flame-retardant), USE: Installations on plaster and in hollow walls, suspended ceilings and in concrete construction, DIN EN 61386-21: Classification 334112.
| Property | Value |
| Outer diameter: | 63 mm |
| Inner diameter: | 55.6 mm |
| Highly slippery inner layer: | no |
| Material: | Polyvinyl chloride (PVC) |
| With sleeve: | yes |
| Color: | gray |
| Halogen-free: | no |
| Flame-retardant version: | yes |
| Bending behavior: | rigid |
| Compressive strength class: | medium (class 3) |
| Impact resistance: | medium (class 3) |
| Surface-mounted: | yes |
| Flush-mounted: | no |
| On Wood: | yes |
| Hollow wall: | yes |
| Suitable for concrete installation: | yes |
| Machinery and plant installation: | no |
| Underfloor installation (screed): | no |
| Outdoor installation: | no |
| Laying in the ground: | no |
| Operating temperature: | -25 to 60 °C |
