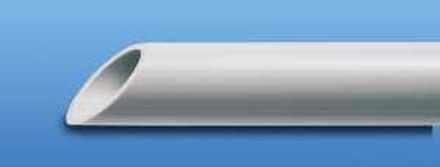

Hegler 9730040 HEGLERPLAST EPKS DN40 plastic insulation pipe

In stock

SKU: 1054831

Price on request

€6.53

€0

Overview

HEGLERPLAST EPKS is a heavy, flame-retardant electrical installation pipe made of PVC, in the nominal widths DN 16, 20, 25, 32, 40, 50 and 63, in the color gray. This plastic straight pipe is used in surface-mounted installations and wherever special demands are placed on pressure resistance. VDE 0605, DIN EN 61386-21. Minimum compressive strength: F 1250 N/5 cm.

Property	Value
Outer diameter:	40 mm
Inner diameter:	34.4 mm
Highly slippery inner layer:	no
Material:	Polyvinyl chloride (PVC)
With sleeve:	yes
Color:	grey
Halogen-free:	no
Flame-retardant version:	yes
Bending behavior:	rigid
Compressive strength class:	heavy (class 4)
Impact resistance:	heavy (class 4)
Surface-mounted:	yes
Flush-mounted:	no
On wood:	yes
Hollow wall:	no
Suitable for concrete installation:	yes
Machinery and plant installation:	no
Underfloor installation (screed):	no
Outdoor installation:	no
Laying in the ground:	no
Operating temperature:	-25 to 60 °C
