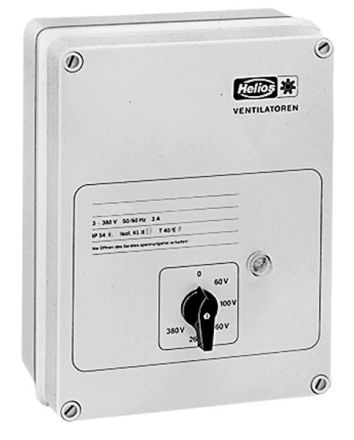

Helios 1948 transformer speed controller MWS 3

In stock
SKU: 295432
€428.13
Into a basketIn the basketGo

Overview

5-stage speed controller for connecting thermal contacts (wired to terminal board) of one or more fans up to the nominal load. With integrated trigger device and control lamp. Restart after a fault via 0 position. Switchable voltages: 0/80/100/130/170/230 volts. Ambient temperature max. 40 °C. Surface-mounted plastic housing, protection class IP 54. ,

Property Value
Number of phases: 1
Number of steps: 5
Width: 200 mm
Height: 254 mm
Infinitely variable power control: no
Depth: 98 mm
Mounting type: Surface-mounted
Color: other
Operating method: Rotary knob
Illumination: Control (off)
Rated current: 3 A
With temperature sensor: yes
Protection class (IP): IP54

Characteristics

LightingControl (off)
ManufacturerHelios
HAN1948
GTIN4010184019480
Number of phases1
Operating moderotary knob
Width200 mm
ColorOther
Height254 mm
Mounting typeSurface-mounted
Rated current3 A
IP protection)IP54
Depth98 mm
