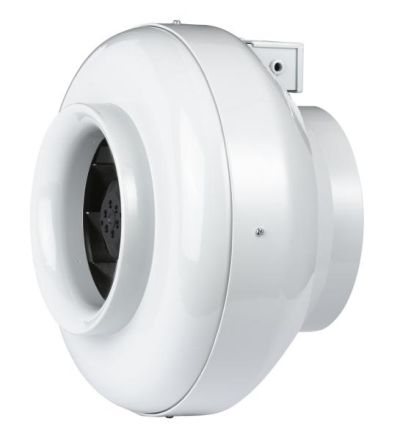

Helios 5973 Radial tube fan RRK 100

In stock
SKU: 295293
€145.72
Into a basketIn the basketGo

Overview

Radial duct fan RADAX RR for direct installation in the duct system., Housing made of impact-resistant plastic with round connection pieces adapted to standard ducts., High-performance radial impeller with backward-curved blades made of plastic. Vibration-free operation due to dynamic balancing in accordance with quality level G 6.3 VDI 2060 and DIN ISO 1940., Drive: Single-phase AC external rotor motor, built-in thermal contacts wired in series with the winding, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.

Property Value
Diameter of the housing: 245 mm
Air volume without load: 290 m³/h
Material of the housing: Plastic
Protection class (IP): IP44
Connection voltage: 230 V
Power consumption: 0.029 kW
With thermal protection: yes
DC motor: no
Indirect drive: no
Electrical connection: Connection terminals
Max. Air temperature: 70 °C
Motor with 2 speeds: no
Suitable for electronic control: yes
Suitable for frequency control: no
Suitable for low current control: no
Suitable for transformer control: yes
Pole-changing: no
Length: 220 mm
Channel diameter: 100 mm
Connection: Flange

Characteristics

Connection voltage230 V
Power consumption0.029 kW
ManufacturerHelios
HAN5973
GTIN4010184059738
Length220 mm
With thermal protectionYes
IP protection)IP44
Housing materialPlastic
