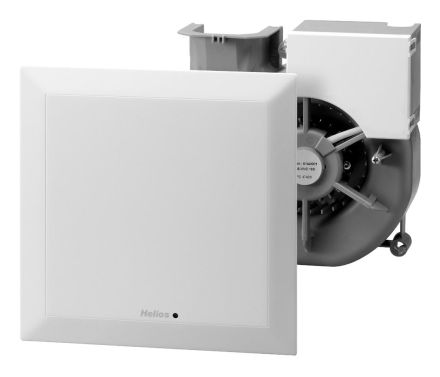

Helios 8143 fan insert ELS-VNC 60

Fan insert with 60 m3/h volume flow with codable run-on and interval operation. Start-up delay of 0 or 45 seconds, run-on time of 6, 10, 15 or 21 minutes and interval time of 4, 8, 12 or 24 hours selectable. Ready to use delivery with flat inner facade (alpine white) and ultraSilence® technology. With permanent filter and filter cleaning indicator as standard. Integrated plug connection for electrical connection. Protectively insulated, class II, IP X5. For installation in area 1 of wet rooms. Maintenance-free, ball-bearing energy-saving motor 230 V~, 50 Hz, 18 W. Sound power 39 dB (A), sound pressure 35 dB(A).*, * with AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, side discharge. Information according to DIN 18017, T.3, edition 1990, section 6.2.4. Footnote 3., Area of application: Automatic, periodic ventilation of rooms with irregular use (hotels, holiday homes). Individually adjustable run-on times increase comfort in private areas., Technical data, Run-on time: 6, 10, 15, 21, Volume flow approx. m³/h: 60, Power consumption approx. watts: 18, Sound pressure level 1) approx. dB(A) with 10 m² equivalent absorption area: 35, Sound power level 1) LWA approx. dB(A): 39, Electrical connection: 230 V~, 50Hz, Electrical supply line in mm²: NYM-O 3 x 1.5, 4 x 1.5*, Protection class II without PE, Connection according to circuit diagram no.: SS-881, All performance and noise information according to DIN 24163, DIN 24166, DIN 45635, DIN 44974, 1) in combination with housing type ELS-GU, side discharge., * for deactivation of the Automatic function. ,
