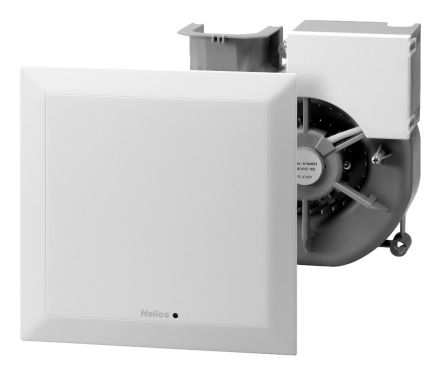

Helios 8161 fan insert ELS-VF 60

Fan insert with 60 m3/h volume flow with electronic, humidity-dependent automatic control. When the set humidity level is reached, automatic operation until the humidity is reduced to normal room air humidity. When switched on/off manually, run-on time of 6, 10, 15 or 21 minutes can be selected and start-up delay of 0 or 45 seconds. Delivered ready for use with flat inner facade (alpine white) and ultraSilence® technology. With permanent filter and filter cleaning indicator as standard. Integrated plug connection for electrical connection. Protectively insulated, class II, IP X5. For installation in area 1 of wet rooms. Maintenance-free, ball-bearing energy-saving motor 230 V~, 50 Hz, 18 W. Sound power 39 dB (A), sound pressure 35 dB(A).*, * with AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, side discharge. Specification according to DIN 18017, T.3, edition 1990, section 6.2.4. Footnote 3., Area of application, Ideal for ventilating bathrooms and damp rooms to prevent mold and moisture damage. Barrier-free due to automatic function., Technical data, Run-on time: 15, Volume flow approx. m³/h: 60, Power consumption approx. watts: 18, Sound pressure level 1) approx. dB(A) with 10 m² equivalent absorption area: 35, Sound power level 1) LWA approx. dB(A): 39, Electrical connection: 230 V~, 50Hz, Electrical supply line in mm²: NYM-O 3 x 1.5, NYM-O 4 x 1.5*, Protection class II without PE, Connection according to circuit diagram no.: SS-881, All performance and noise information according to DIN 24163, DIN 24166, DIN 45635, DIN 44974, 1) in combination with housing type ELS-GU, side discharge., * for deactivation of the automatic function,
