Hensel DK 0102 W 0.75-2.5 qmm 3-phase 5x 3-wire cable junction box

In stock
SKU: 958673
€5.81
Into a basketIn the basketGo

Overview

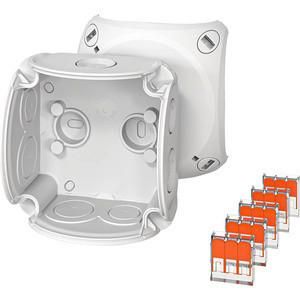

Cable junction box made of high-quality thermoplastic. For surface-mounted applications in buildings or protected installation outdoors. With external tabs for fastening and cover fastening via quick-release fasteners. With Wago Compact connection terminal 221-413 and fastening adapters. Cable entry via elastic sealing membranes in the housing walls and floor. Subsequent use of cable glands possible by removing the sealing membrane.

Property Value
Protection class (IP): IP66
Length: 84 mm
Width: 84 mm
Weight: 0.1
Weight unit: KG
Color: gray
Halogen-free: yes
Depth: 55 mm
Shape: square
Surface: untreated
Rated insulation voltage Ui: 450 V
Sealable: yes
Functional integrity: without
Operating temperature: -25 - 40 °C
Material: Plastic
Number of entries: 8
Cover fastening: screwed
Max. Conductor cross-section: 2.5 mm²
Introduction from the rear: yes
For Ex-Zone Gas: without
Type of housing feedthrough: Sealing membrane
For Ex-Zone Dust: without
Cover design: blank cover
Short description: Cable junction box 0.75-2.5 qmm 3-phase, 5x 3-wire connection terminals

Characteristics

HAB0.75-2.5 qmm 3-phase 5x 3-wire
ManufacturerHensel
HANDK 0102 W
GTIN4012591161578
Cover designBlind cover
Rated insulation voltage Ui450V
Width84 mm
Operating temperature-25 - 40 °C
ColorGray
ShapeSquare
Functional preservationWithout
Weight0,1
Weight unit kg
Halogen freeYes
Short descriptionCable junction box 0.75-2.5 q mm 3-phase, 5x 3-wire connection terminals
Length84 mm
SurfaceUntreated
IP protection)IP66
Depth55 mm
MaterialPlastic
Hensel DK 0102 W 0.75-2.5 qmm 3-phase 5x 3-wire cable junction box
