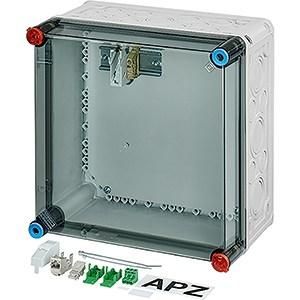

Hensel Mi 2279 300x300x170mm Mi-APZ housing

In stock
SKU: 707077
€211.01
Into a basketIn the basketGo

Overview

Housing for the construction of energy switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to each other. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing for the integration of a router of the measuring point operator. Installation of the router on a mounting plate 259 x 259 mm is possible.

Property Value
Height: 300 mm
Width: 300 mm
Depth: 170 mm
Installation depth: 146 mm
Inner depth: 146 mm
Protection type (IP): IP65
Protection class: II
Impact resistance: IK08
Material of the housing: Plastic
RAL number: 7035
Mounting type: Surface-mounted
Suitable for outdoor use: no
Surface: untreated
Suitable for lightning protection: no
Mounting option: yes
With mounting plate: yes
Number of cable entries: 40
Number of modules: 1
Number of openings for flange plates: 4
Number of rows: 1
Type of cover: Cover
Type of door: without
Cover design: closed
Width in division units: 6
Functional integrity: without
Material thickness of housing: 3 mm
Material thickness of door/cover: 3 mm
With lock: no
Rated current (In): 16 A
Transparent cover/door: yes

Characteristics

HABMi 2279 300x300x170mm
ManufacturerHensel
HANMi 2279
GTIN4012591134695
Cultivation optionYes
Number of cable entries40
Number of modules1
Number of rows1
Number of openings for flange plates4
Type of coverLid
Type of doorWithout
Cover designClosed
Width300 mm
Width in pitch units6
Installation depth146 mm
Functional preservationWithout
Suitable for outdoor useNo
Suitable for lightning protectionNo
Height300 mm
Internal depth146 mm
Housing material thickness3 mm
Material thickness door/lid3 mm
With mounting plateYes
With lockNo
Mounting typeSurface-mounted
Nominal current (In)16A
SurfaceUntreated
RAL number7035
Impact resistanceIK08
IP protection)IP65
Protection classII
Depth170 mm
Transparent lid/doorYes
Housing materialPlastic
