Hensel Mi AK 3142 distributor

In stock
SKU: 710610
€389.87
Into a basketIn the basketGo

Overview

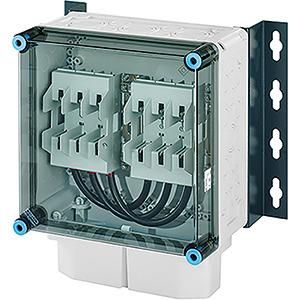

Housings for the construction of power switchgear combinations up to 630 A or as individual housings. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housings for wall mounting also via external brackets or with mounting rails. Ready-to-connect distributor with 2 fuse bases NH 00, 3-pole.

Property Value
Rated current: 125 A
Height: 507 mm
Width: 386 mm
Depth: 232 mm
Protection class (IP): IP65
Number of groups: 2
Placement on Rail system: universal
With transparent cover: yes
Housing material: plastic
Fuse: NH fuse
Mounting option: yes

Characteristics

HABMi AK 3142
ManufacturerHensel
HANMi AK 3142
GTIN4012591135005
Cultivation optionYes
Rated current125A
Width386 mm
Height507 mm
IP protection)IP65
Depth232 mm
Housing materialPlastic
