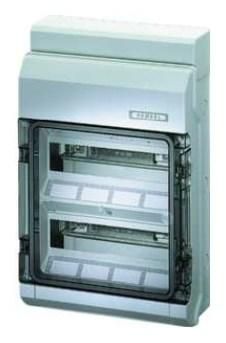

Hensel KV 2524 vending machine housing

In stock
SKU: 480073
€89.11
Into a basketIn the basketGo

Overview

Small distributor made of high-quality thermoplastic (polystyrene). For surface-mounted applications in buildings or protected installation outdoors. Automated housing with 24 division units for installing devices with snap-on fastening on DIN rails. Cable entry via integrated elastic sealing membranes. With transparent door and cable entry panel, integrated accessory compartment and cover strip for the device cutout. Protection class IP 54.

Property Value
Width in pitch units: 12
Number of rows: 2
Height: 458 mm
Width: 295 mm
Depth: 129 mm
Protection class (IP): IP54
Color: gray
With lock: no
Transparent cover/door: yes
Housing material: plastic
RAL number: 7035
DIN rail: yes
Mounting option: yes
Installation depth: 93 mm
EMC version: no
With mounting plate: no
Type of cover: door
Cover design: closed
Inner depth: 114 mm

Characteristics

HABKV2524
ManufacturerHensel
HANKV 2524
GTIN4012591622260
Cultivation optionYes
Number of rows2
Type of coverDoor
Cover designClosed
Width295 mm
Width in pitch units12
DIN railYes
EMC versionNo
Installation depth93 mm
ColorGray
Height458 mm
Internal depth114 mm
With mounting plateNo
With lockNo
RAL number7035
IP protection)IP54
Depth129 mm
Transparent lid/doorYes
Housing materialPlastic
