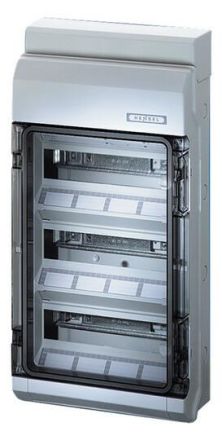

Hensel KV 3536 vending machine housing

In stock
SKU: 480071
€120.67
Into a basketIn the basketGo

Overview

Small distributor made of high-quality thermoplastic (polystyrene). For surface-mounted applications in buildings or protected installation outdoors. Automated housing with 36 division units for installing devices with snap-on fastening on DIN rails. Cable entry via integrated elastic sealing membranes. With transparent door and cable entry panel, integrated accessory compartment and cover strip for the device cutout. Protection class IP 54.

Property Value
Protection class (IP): IP54
Width: 295 mm
Housing material: Plastic
Gewicht: 3,52
Gewichtseinheit: KG
Statistische Warennummer: 85389099
Montageart: Aufputz
Color: gray
Height: 583 mm
Depth: 129 mm
RAL number: 7035
Installation depth: 93 mm
Number of rows: 3
Type of cover: Door
Installation option: yes
Inner depth: 114 mm
DIN rail: yes
Width in division units: 12
Transparent cover/door: yes
Cover design: closed
Short description: KV 90-automatic housing 36 division units (3x12x18mm), IP 54

Characteristics

HABKV3536
ManufacturerHensel
HANKV 3536
GTIN4012591622284
Cultivation optionYes
Number of rows3
Type of coverDoor
Cover designClosed
Width295 mm
Width in pitch units12
DIN railYes
Installation depth93 mm
ColorGray
Weight3,52
Weight unit kg
Height583 mm
Internal depth114 mm
Short descriptionKV 90-automatic housing 36 division units (3x12x18 mm), IP 54
Mounting typeSurface-mounted
RAL number7035
IP protection)IP54
Statistical commodity code85389099
Depth129 mm
Transparent lid/doorYes
Housing materialPlastic
