Hensel KV 9104 small distribution board

In stock
SKU: 480093
€32.68
Into a basketIn the basketGo

Overview

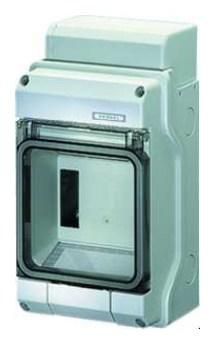

Small distributor made of high-quality thermoplastic (polystyrene). For surface-mounted applications in buildings or protected installation outdoors. Automated housing with 4.5 division units for installing devices with snap-on fastening on DIN rails. Cable entry via integrated elastic sealing membranes. With transparent flap and cable entry panel, integrated accessory compartment and break-out device cut-out. Protection class IP 65.

Property Value
Width in pitch units: 5
Number of rows: 1
Height: 228 mm
Width: 126 mm
Depth: 111 mm
Protection class (IP): IP65
Color: gray
With lock: no
Transparent cover/door: yes
Housing material: plastic
RAL number: 7035
DIN rail: yes
Mounting option: yes
Installation depth: 93 mm
EMC version: no
With mounting plate: no
Type of cover: door
Cover design: closed
Inner depth: 100 mm

Characteristics

HABKV9104
ManufacturerHensel
HANKV 9104
GTIN4012591620914
Cultivation optionYes
Number of rows1
Type of coverDoor
Cover designClosed
Width126 mm
Width in pitch units5
DIN railYes
EMC versionNo
Installation depth93 mm
ColorGray
Height228 mm
Internal depth100 mm
With mounting plateNo
With lockNo
RAL number7035
IP protection)IP65
Depth111 mm
Transparent lid/doorYes
Housing materialPlastic
