HHG 92600129-DE 6-100W/VA pressure change LED dimmer insert

HHG 92600129-DE 6-100W/VA pressure change LED dimmer insert

In stock

SKU: 415388

Price on request

€31.96

€0

Overview

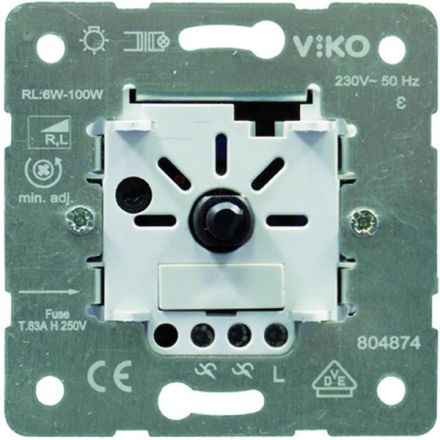

LED dimmer insert pressure change phase control dimmer (RL) with potentiometer for minimum brightness, overvoltage protection and fine fuse T0.63A, 5x20mm for dimmable LED lamps, incandescent, HV, NV halogen lamps with conventional and electronic Tronic transformers matching cover Novella anthracite 92510869 and silver 92510069, Meridian 92542169, Karre white 92500020

Property	Value
Device height:	71 mm
Device width:	71 mm
Connection type:	Screw terminal
Mounting type:	Flush-mounted
Dimming leading edge:	no
Dimming trailing edge:	yes
Nominal voltage:	230 V
Color:	white
Suitable for protection class (IP):	IP20
Operating method:	Rotary/push button
Halogen-free:	no
Composition:	Basic element
Load type:	universal and LED retrofit
Series dimmer:	no
Extension input:	no
Light value memory:	yes
Can be used with button:	no
Can be used with motion detector:	no
Can be used with presence detector:	no
Can be used with Radio button:	no
Can be used with IR button:	no
Mounting type:	claw/screw fastening
Material:	metal
Surface protection:	untreated
Frequency:	50 Hz
Transparent:	no
App control via Bluetooth:	no
Rated power resistive Load:	6 to 100 W
Max. switching power LED:	100 W
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no
